QuinLED Dig-Octa System
Modular, scalable, professional.
A Brainboard controller stacks onto your choice of Powerboard, so you scale current independently — from 30A to 100A — with Ethernet and micro-SD.
Build your system
5 partsPick a Brainboard for the brains and one Powerboard for your current and connector needs — they stack together.
-

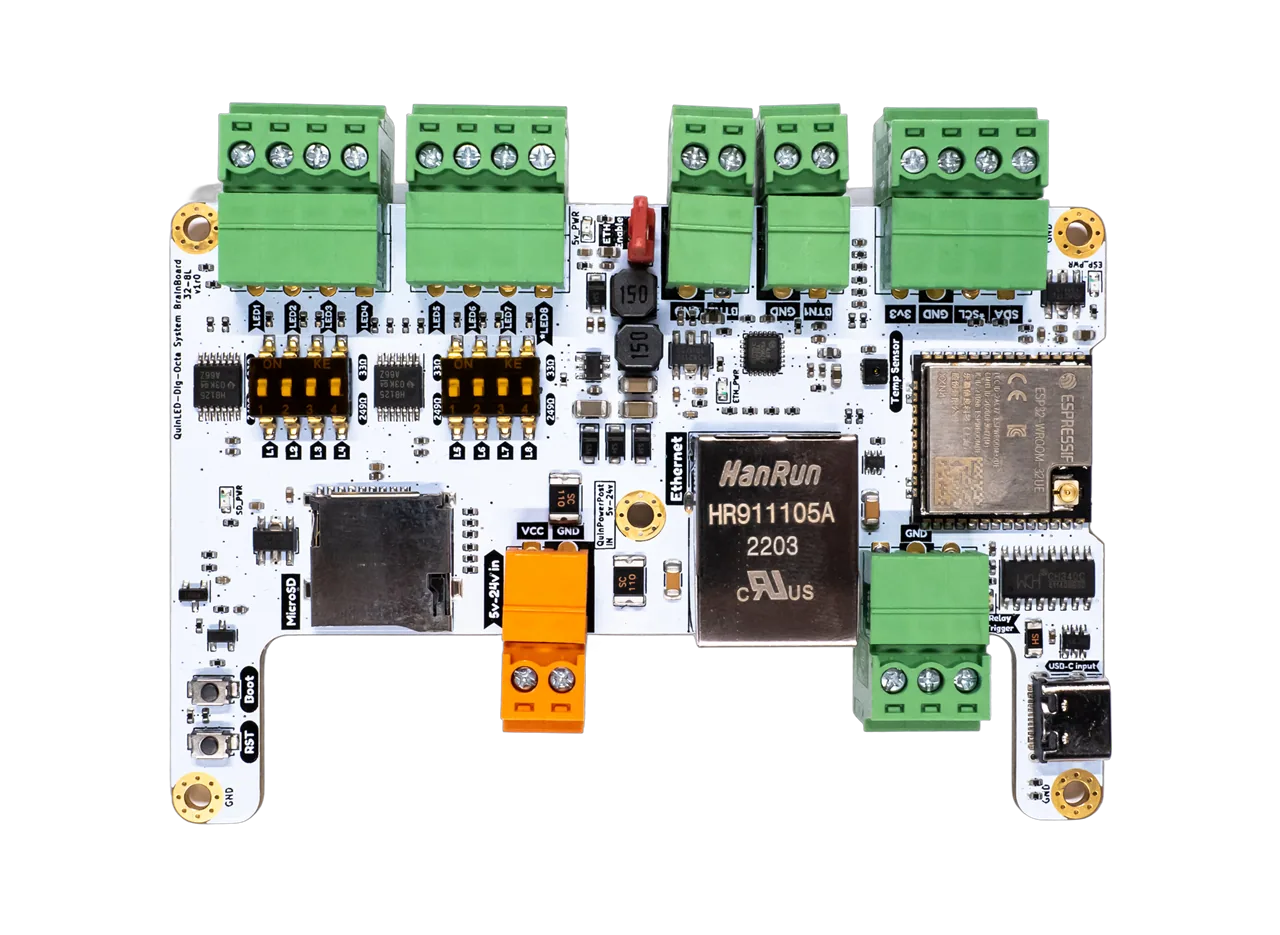

Dig-Octa Brainboard-32-8L The brains of the Dig-Octa system. from$32.50 -

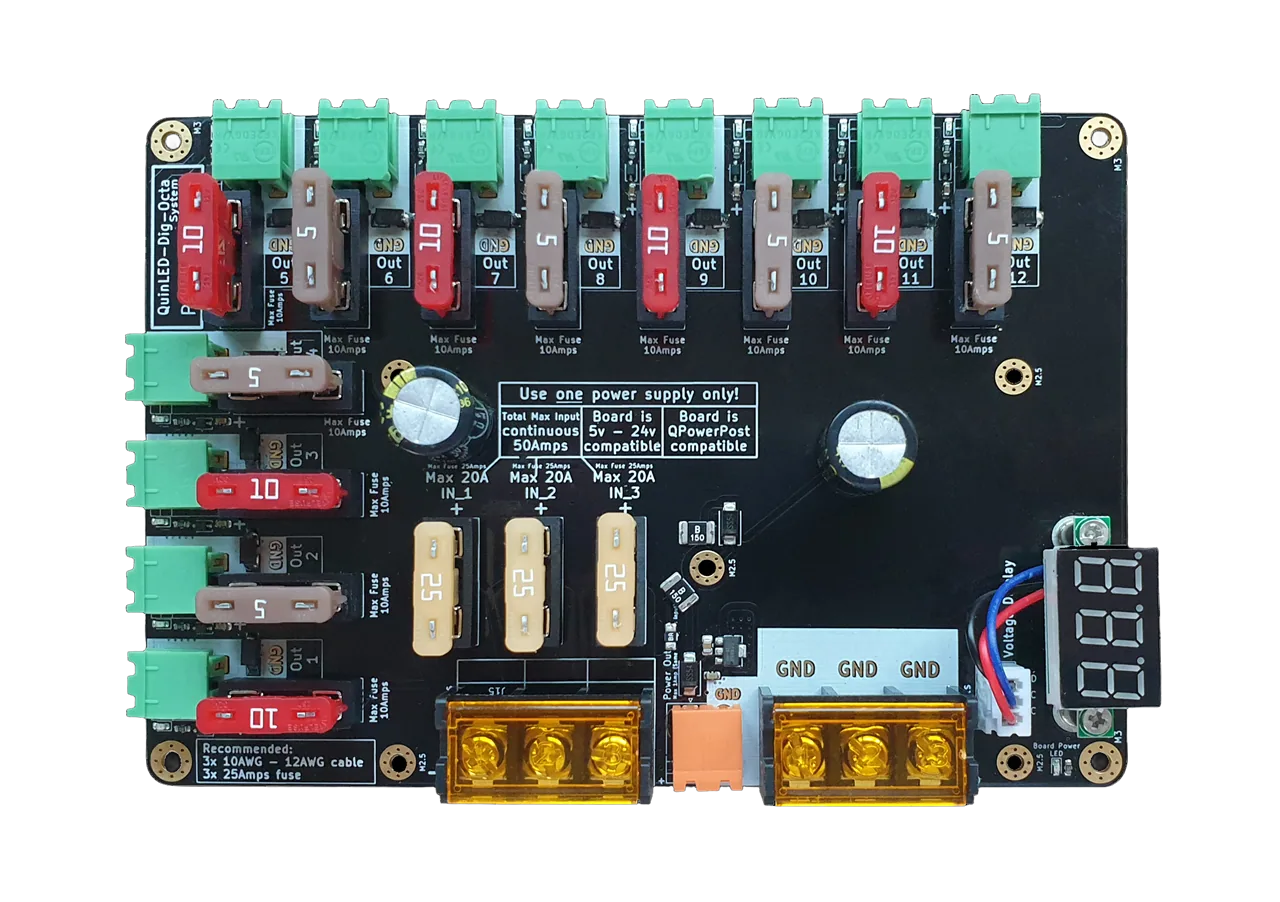

Dig-Octa Power-5 50A pluggable-connector powerboard. from$32.50 -

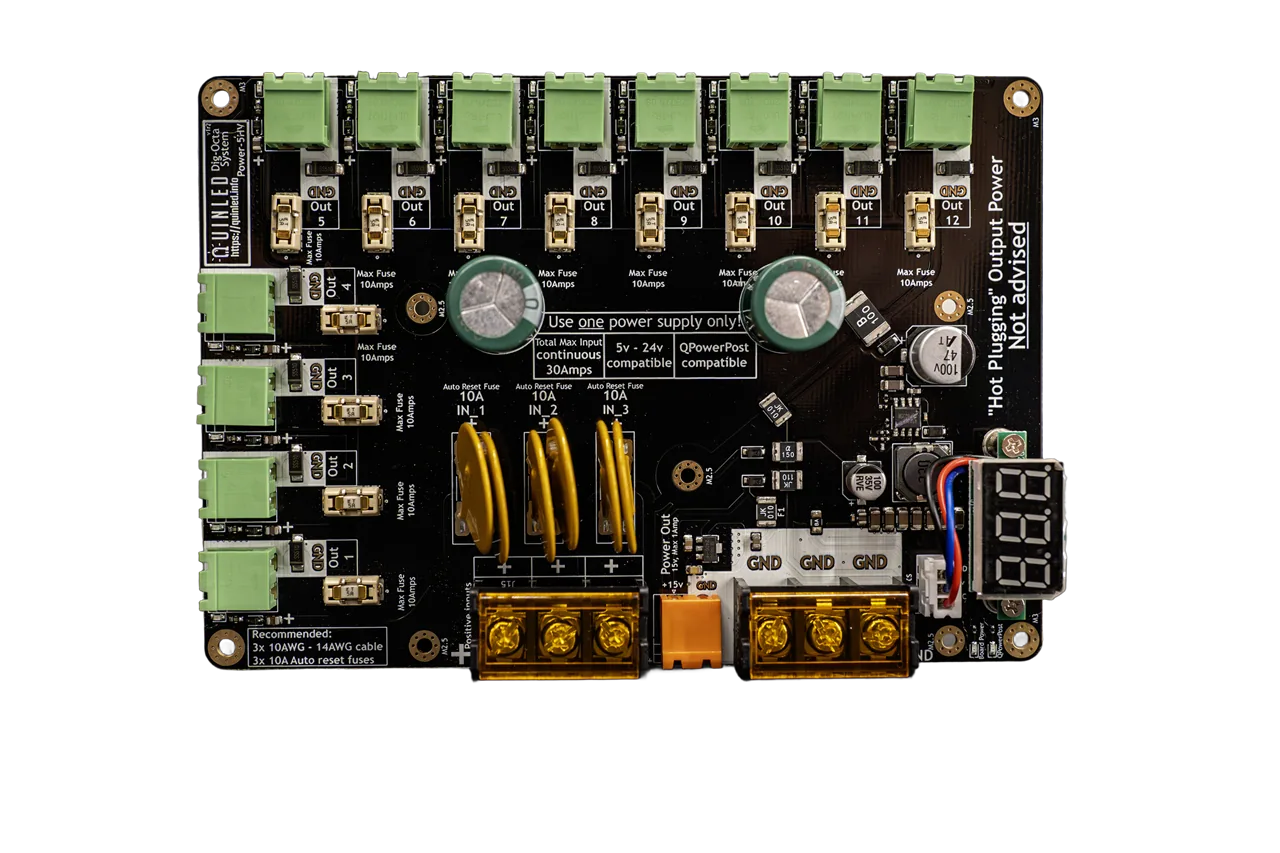

Dig-Octa Power-5HV 30A high-voltage (up to 48V) powerboard. from$37.49 -

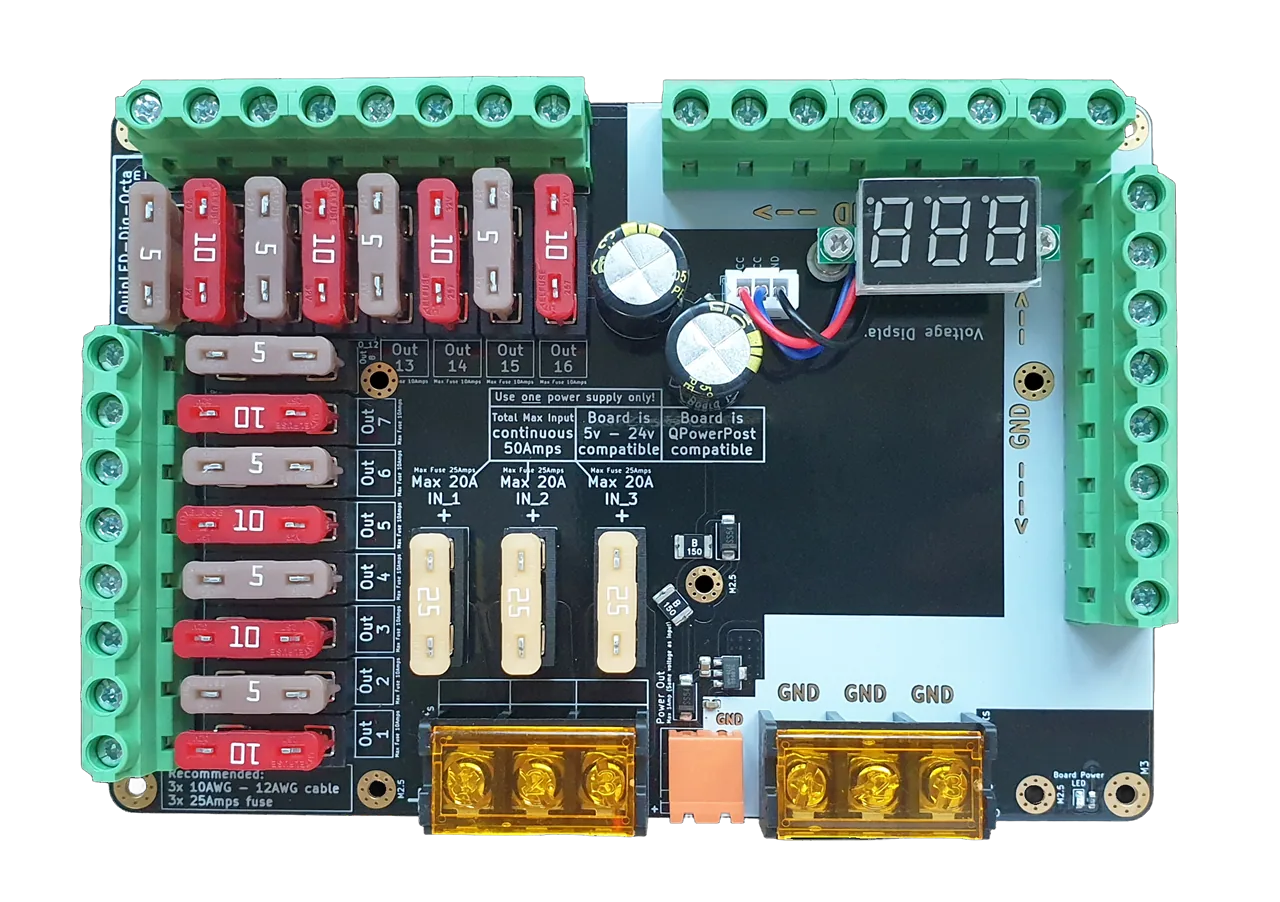

Dig-Octa Power-7 50A screw-terminal powerboard. from$34.99 -

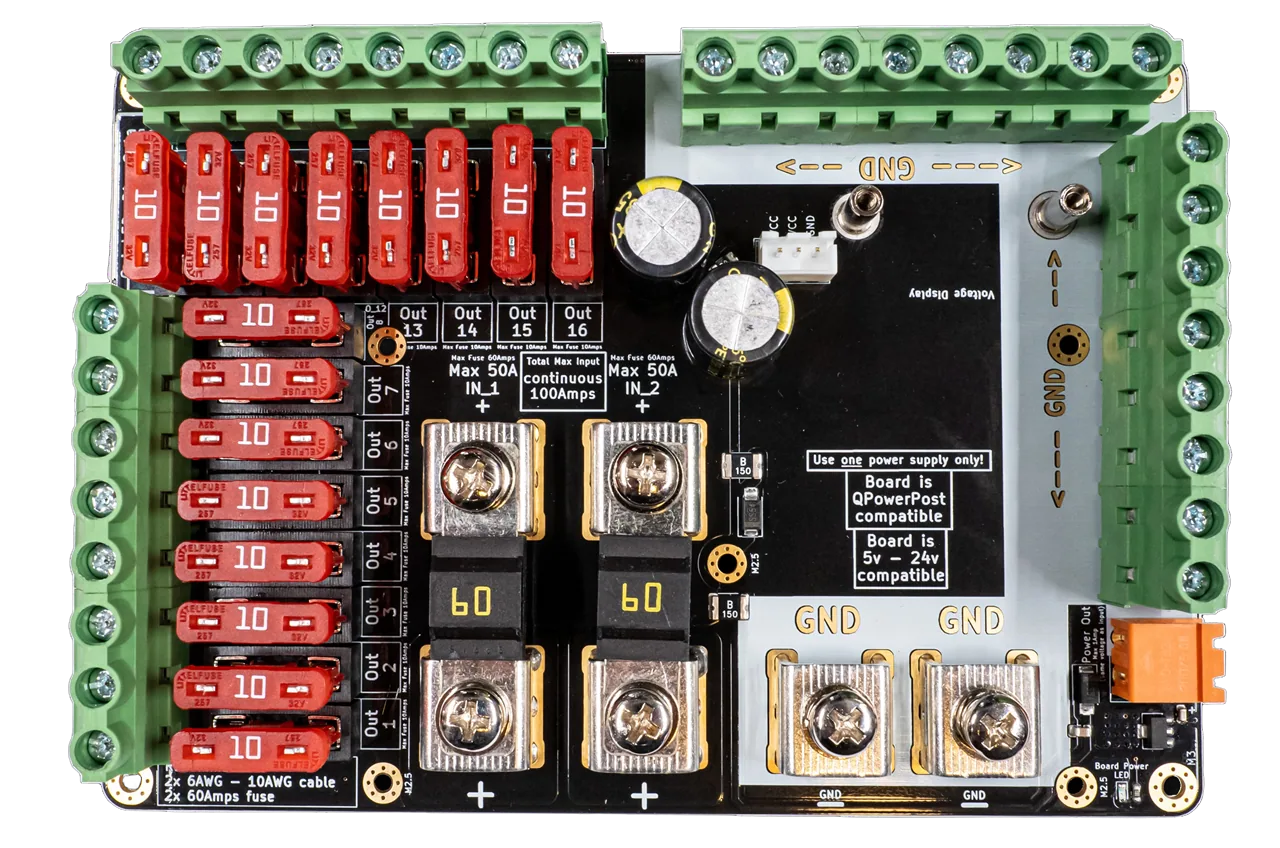

Dig-Octa Power-7HC 100A high-current screw-terminal powerboard. from$44.99
Pricing indexed mid-2026 — check the store for current pricing. You check out and pay on the reseller's site.
Highlights
- 8 digital channels
- 30A–100A by Powerboard
- Wired Ethernet + micro-SD
- Mix-and-match Brainboard + Powerboard
Specifications

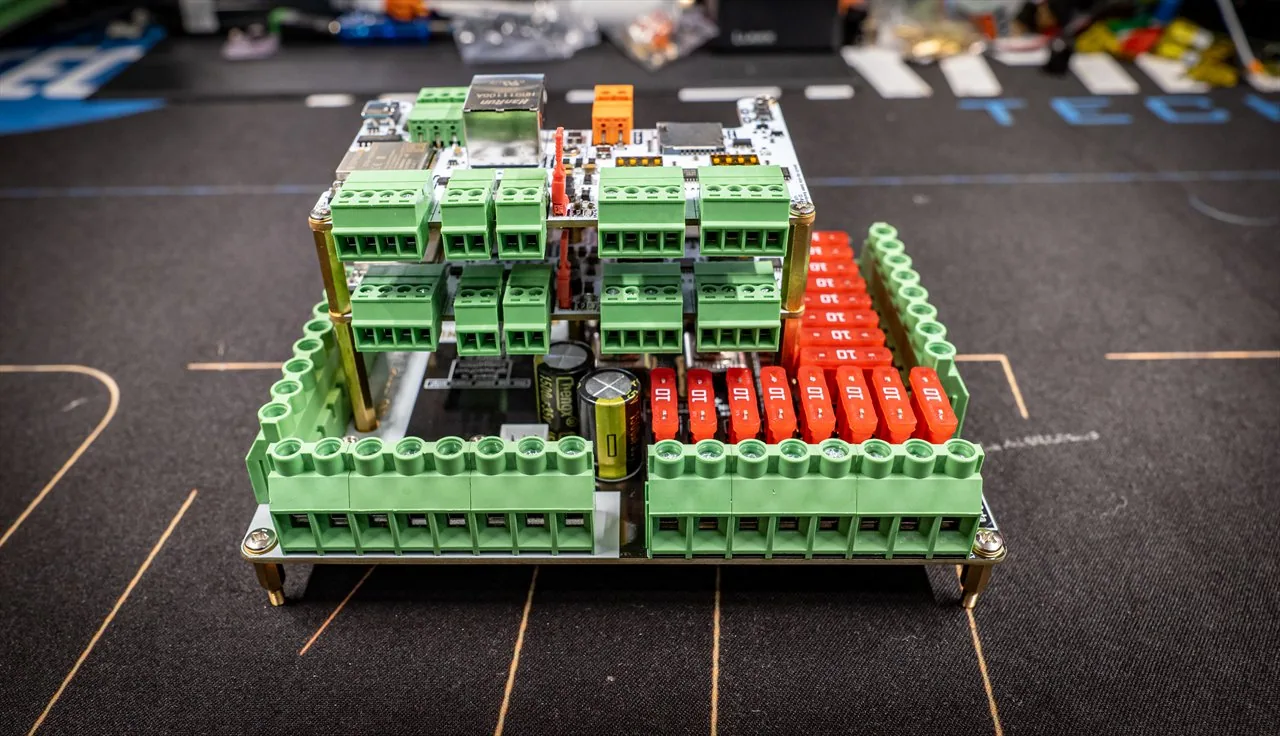

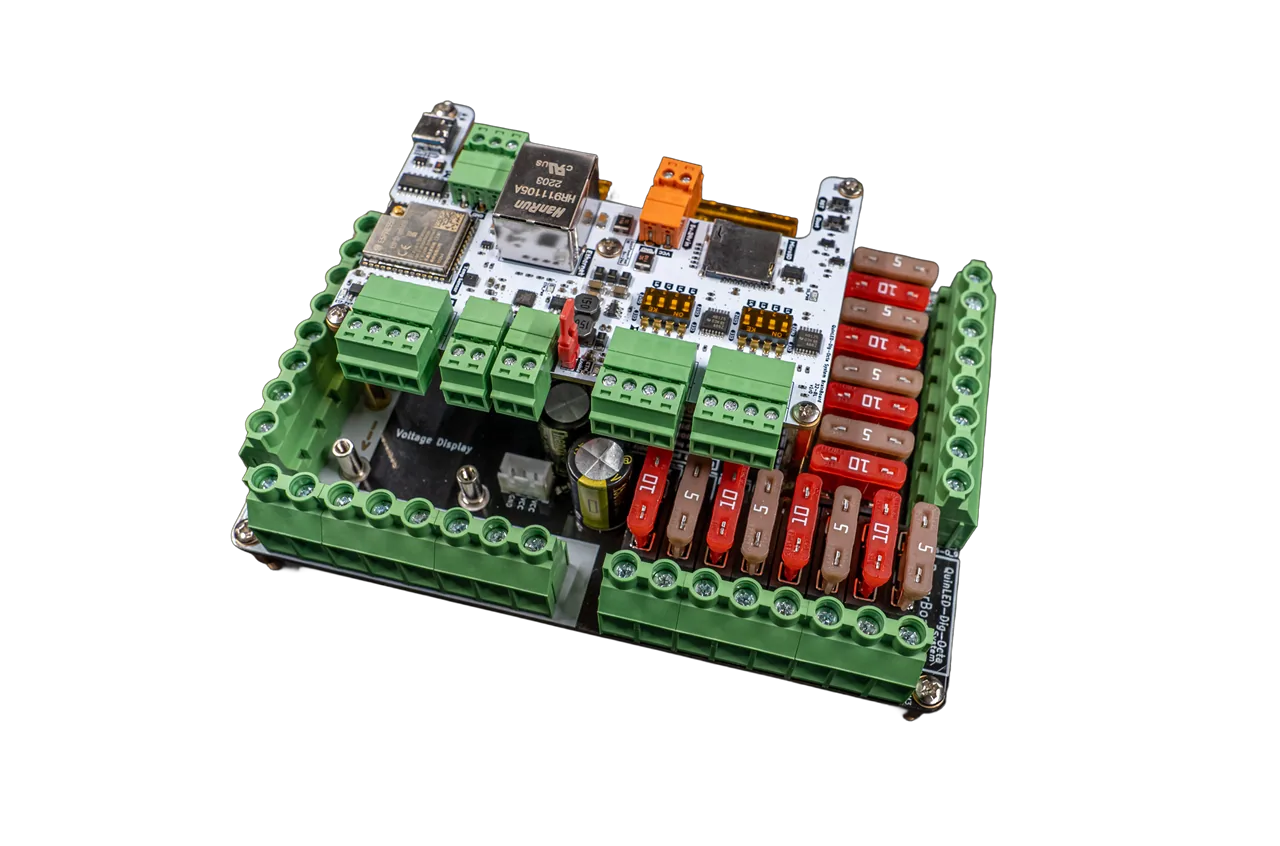

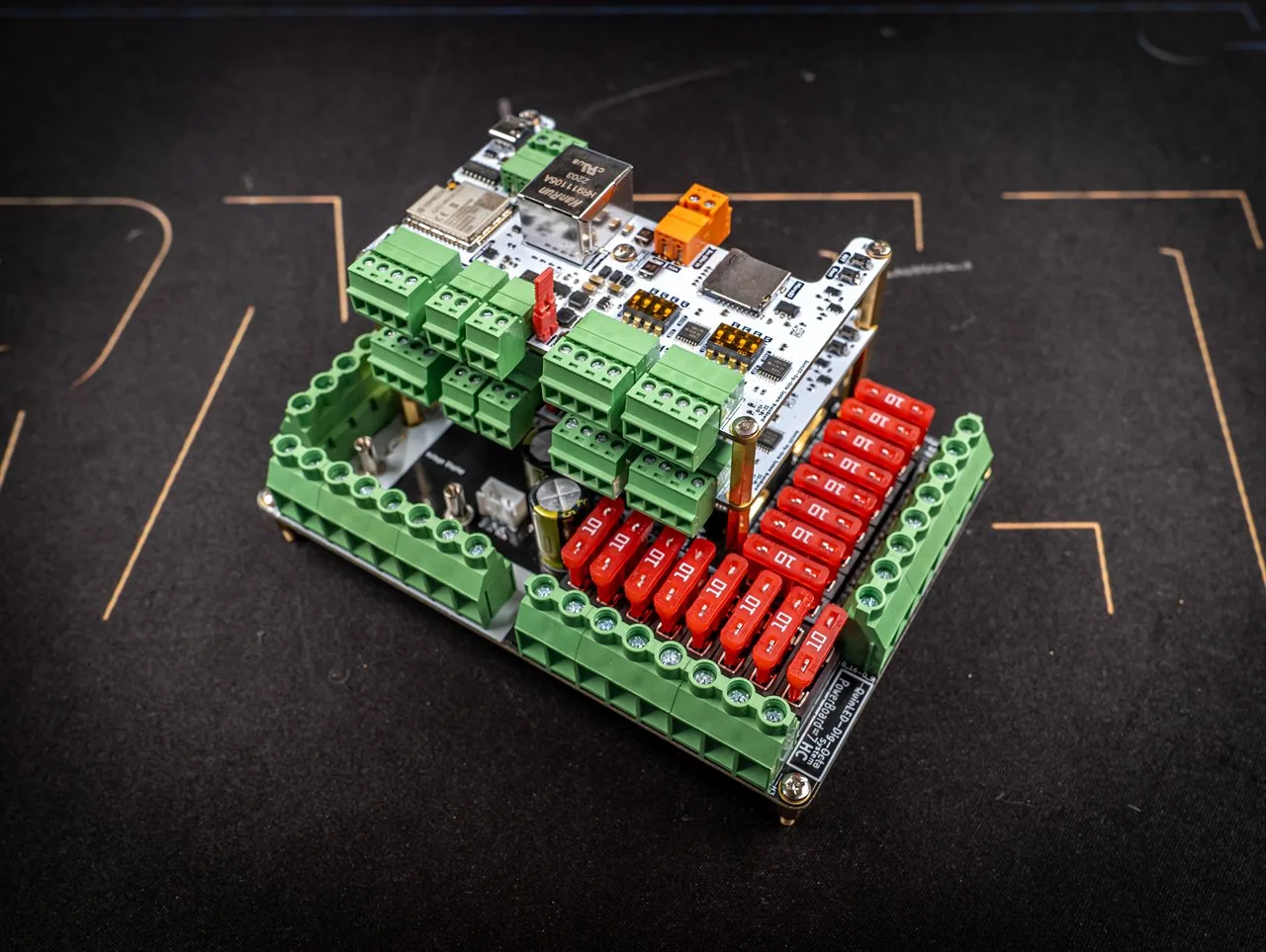

The QuinLED Dig-Octa is the modular flagship: an 8-channel addressable LED system for 5–48V strips, built from two stacking parts — a Brainboard (the ESP32 controller, with wired Ethernet and a micro-SD slot) and your choice of four Powerboards, from 30A up to a massive 100A. Because power is decoupled from the controller, you match the current capacity and connector style to each install, and simply stack more units as a project grows. Every output is fused on the Powerboard. It runs WLED like the rest of the range and exists for installs that outgrow every single-board controller — when channel count, power, fusing and network reliability must scale together. A working Brainboard-plus-Powerboard pair starts from $65 — pick the combination on this page.

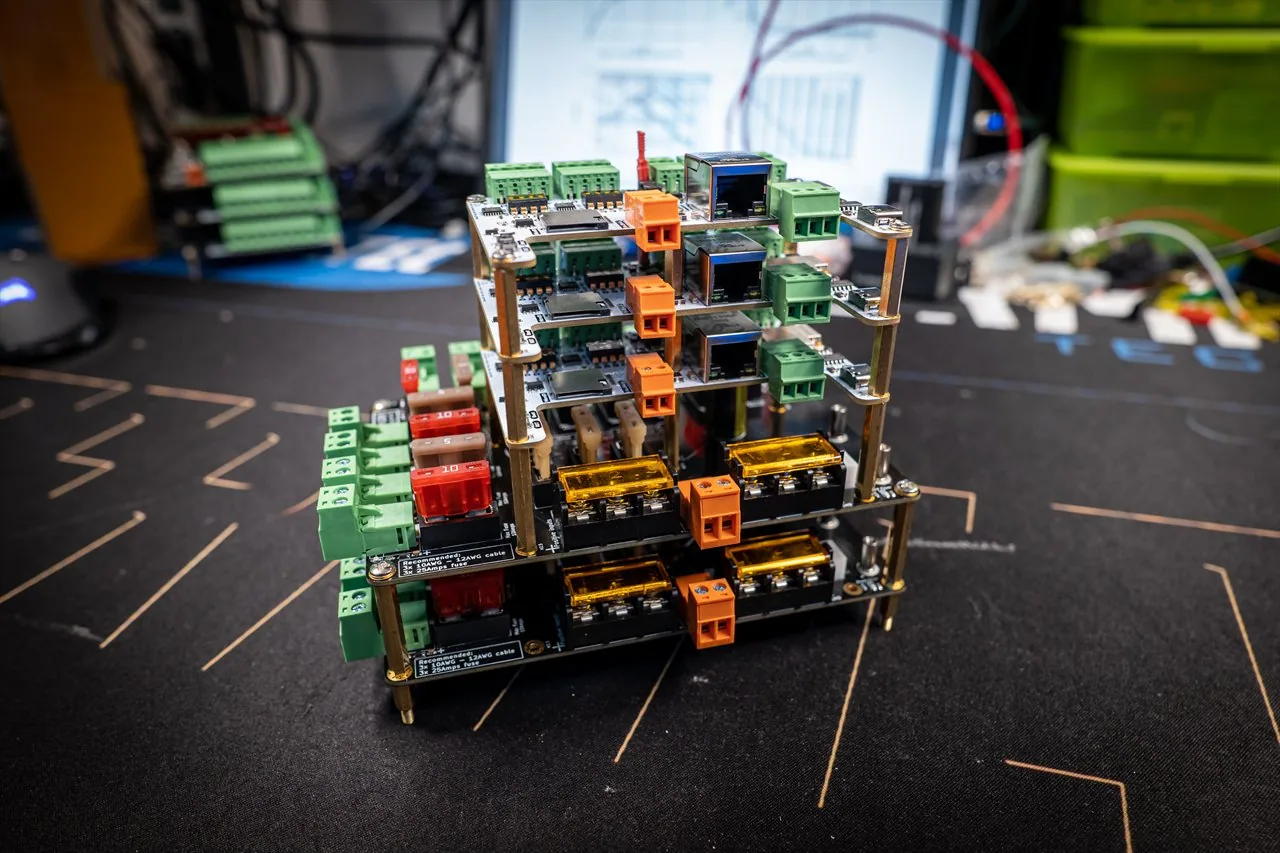

The Dig-Octa is built for jobs other controllers can't reach: whole-house pixel installs, large permanent holiday displays, and stage or prop builds where dozens of metres of strip and rock-solid uptime matter. Wired Ethernet keeps it dependable across a big property where WiFi gets flaky, the micro-SD slot adds onboard storage, and because the Powerboard is chosen separately you can match the exact current and connector style each install needs — then stack more units as it grows. Choose your components below.
| Outputs | 8 digital channels |
|---|---|
| Input | 5V – 48V* |
| Max current | 30A – 100A (by Powerboard) |
| MCU | ESP32 |
| Networking | Ethernet + micro-SD |
| System | Brainboard + Powerboard |
* All Powerboards are 5–24V except the Power-5HV, which is 24–48V.
