QuinLED An-Penta-Plus
High-power 5-channel analog dimmer. Light worth filming.
The flagship encased analog dimmer for 12–48V strips, with high per-channel power, WiFi and wired Ethernet, plus a digital output.
Where to buy
6 resellers- ALLNET China Worldwide $39.99 USD Buy
- DrZzs United States $52.00 USD Buy
- Jerems Inc Canada C$73.99 CAD Buy
- QuinLED NL Netherlands · Belgium · Germany €57.49 EUR · incl. VAT Buy
- Computerstyret Julelys Denmark · Sweden kr 489 DKK · incl. VAT Buy
- Ledio Norway kr 749 NOK · incl. VAT Buy
Pricing indexed mid-2026. Check the specific store for current pricing. quinled.shop links you to the reseller, and you check out and pay there.
Highlights
- Flicker-free ~20kHz PWM
- Up to 10A/ch · 30A total
- WiFi + wired Ethernet
- 5 analog + 1 digital output
Specifications
The QuinLED An-Penta-Plus is a flagship analog LED dimmer with five analog channels plus a digital output (six in total) for 12–48V single-colour, RGB, RGBW and tunable-white strips, driving up to 10A per channel and 30A total. It runs flicker-free ~20kHz PWM, offers both WiFi and wired Ethernet with replaceable fuses in a finned aluminium case, and starts from $39.99.

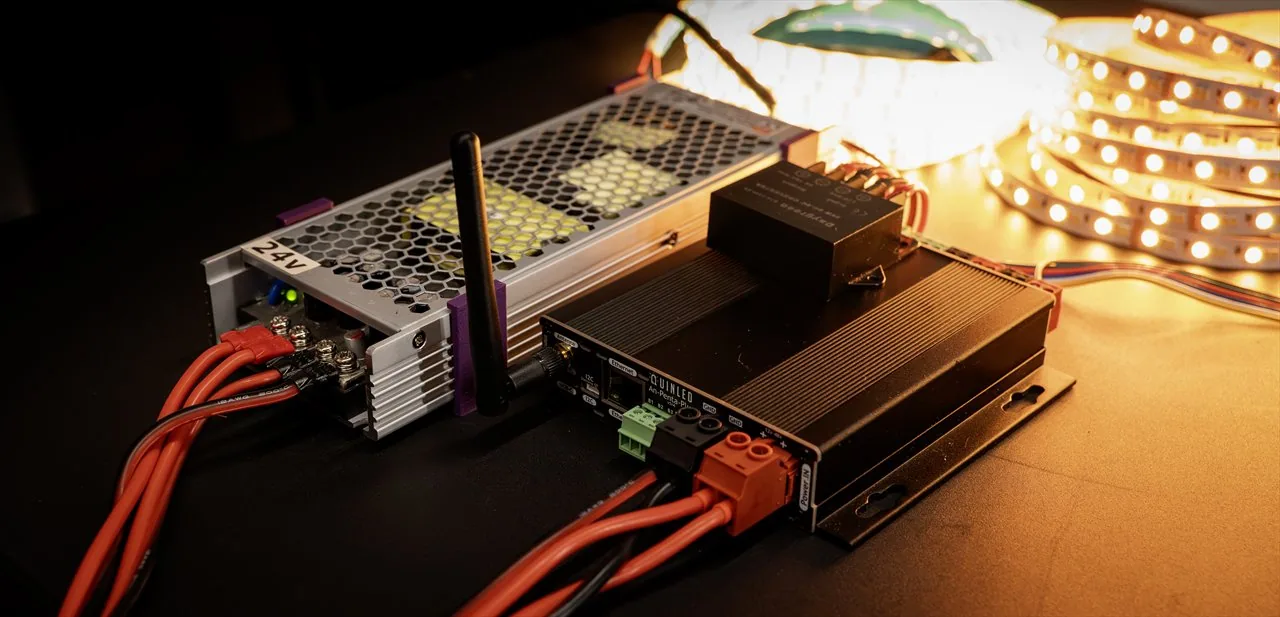

The An-Penta-Plus is the dimmer for serious analog installs: bright architectural lighting, a tunable-white ceiling you intend to film, or a run fed by a Mean Well supply that has to hold a steady colour on camera. The high per-channel current drives long, dense tape, wired Ethernet keeps it dependable in a structured install, and the extra digital output can run a short addressable accent alongside the five analog channels.
| Channels | 6 (5 analog + 1 digital) |
|---|---|
| Input | 12V – 48V |
| Power | up to 10A/ch · 30A total |
| MCU | ESP32 |
| Wireless | WiFi + Ethernet + USB-C |
| PWM | ~20kHz (flicker-free) |
Replacement fuses: 8A + 5A SMD 2410 · SMD 2410 fuse pack · fuse finder
