QuinLED An-Penta-Mini
Compact 5-channel analog dimmer.
A smaller, lower-cost housed analog dimmer for 12–48V dumb strips, built on the ESP32-C3.
Where to buy
4 resellers- ALLNET China Worldwide $29.99 USD Buy
- DrZzs United States $39.00 USD Buy
- Jerems Inc Canada C$48.99 CAD Buy
- QuinLED NL Netherlands · Belgium · Germany €44.99 EUR · incl. VAT Buy
Pricing indexed mid-2026 — check the store for current pricing. quinled.shop links you to the reseller — you check out and pay there.
Highlights
- Flicker-free ~20kHz PWM
- 12–48V dumb strips
- ESP32-C3 · WiFi · USB-C
- Internal fusing · aluminium case
Specifications

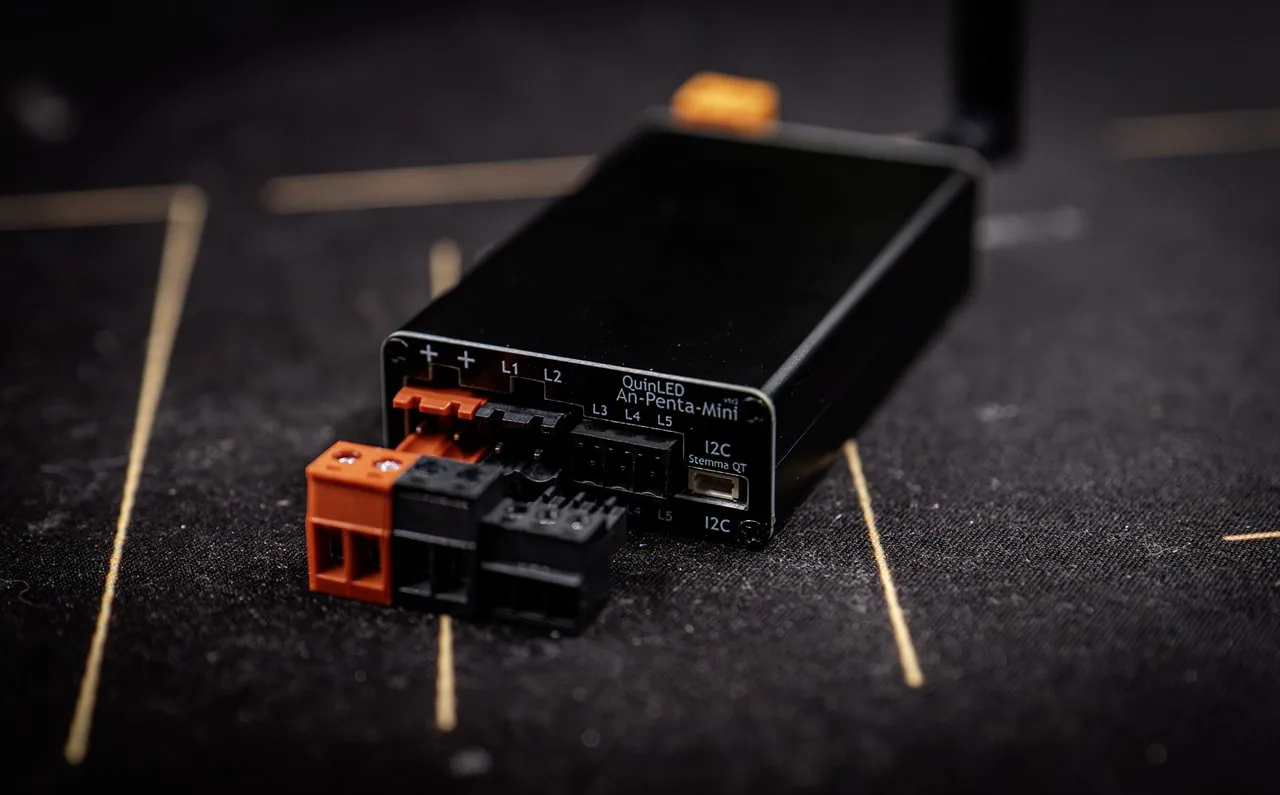

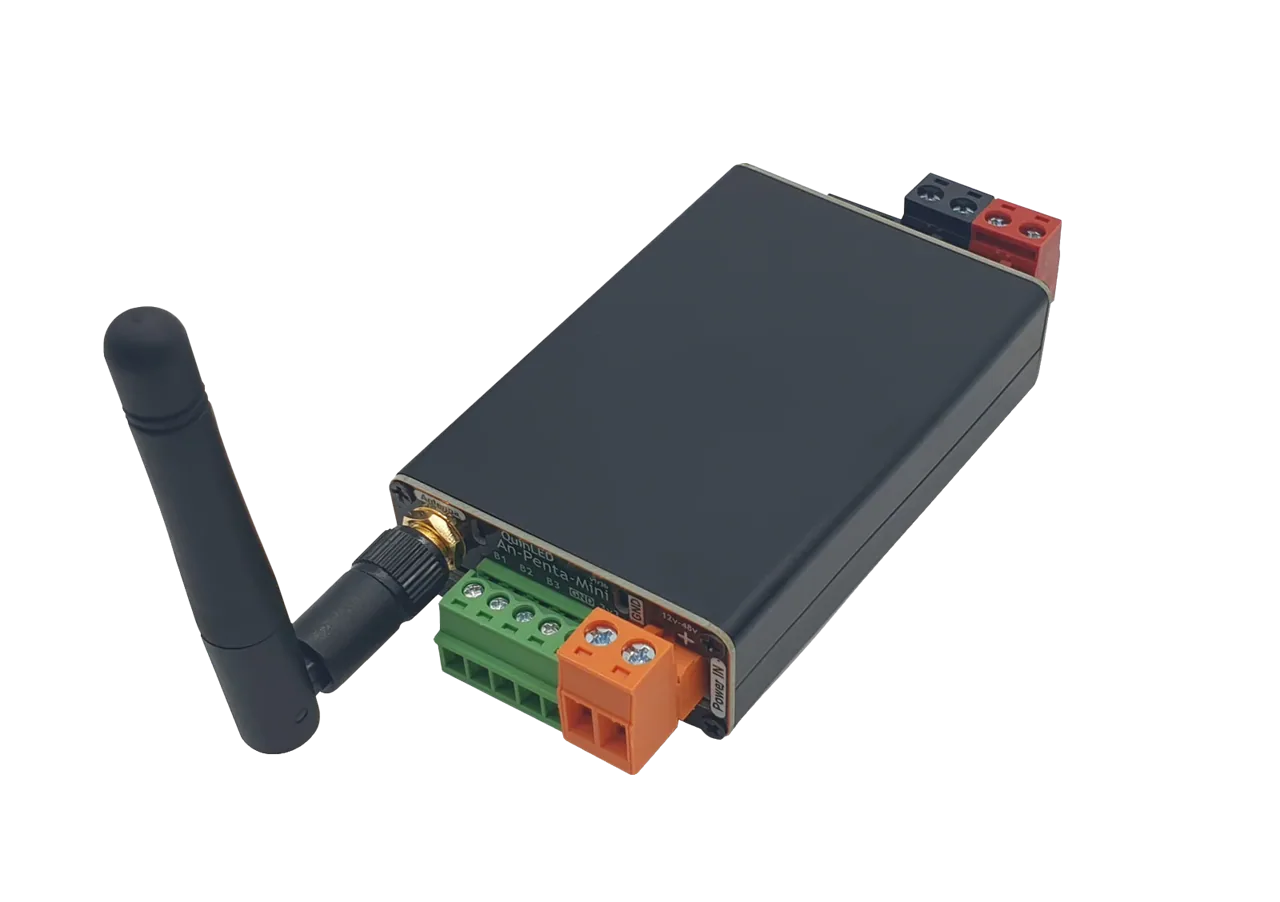

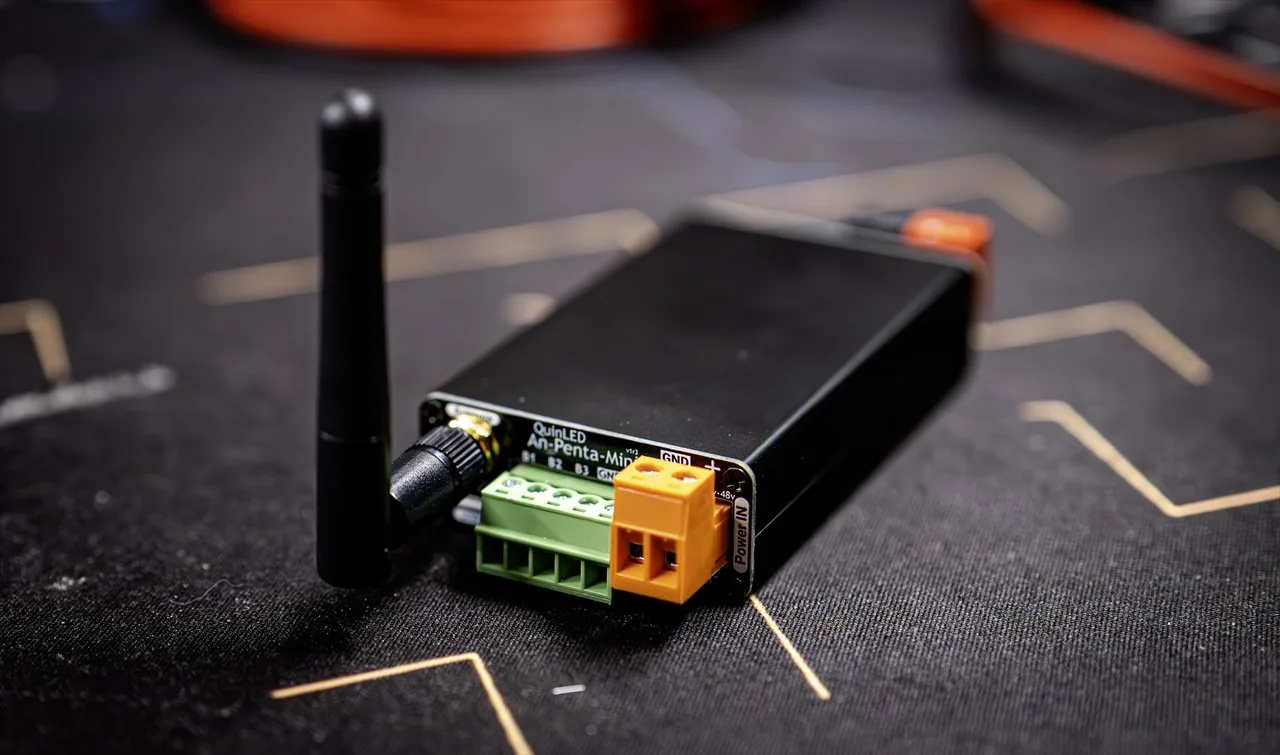

The QuinLED An-Penta-Mini is a compact 5-channel analog LED dimmer for 12–48V single-colour, RGB and RGBW strips, built on the efficient ESP32-C3 with WiFi and a USB-C port. It runs flicker-free ~20kHz PWM, has replaceable internal fuses and a compact aluminium case, and starts from $29.99.
The An-Penta-Mini is the easy, affordable way into proper analog dimming — ideal for a desk, a display cabinet, or a single accent run of warm-white or RGBW tape where you want smooth, camera-friendly dimming without a full-size board. Small enough to hide out of sight, it's the analog board most people start with before stepping up to a Plus or Deca.
| Channels | 5 (analog) |
|---|---|
| Input | 12V – 48V |
| Power | up to 5A/ch · 10A total |
| MCU | ESP32-C3 |
| Wireless | WiFi (ext. antenna) + USB-C |
| Fusing | Replaceable SMD fuses |
