QuinLED An-Penta-Deca
High-channel-count analog dimmer.
A 15-channel high-power analog dimmer in an aluminium housing — effectively a double Penta.
Where to buy
4 resellers- ALLNET China Worldwide $39.99 USD Buy
- DrZzs United States $49.00 USD Buy
- Jerems Inc Canada C$64.99 CAD Buy
- QuinLED NL Netherlands · Belgium · Germany €54.99 EUR · incl. VAT Buy
Pricing indexed mid-2026 — check the store for current pricing. quinled.shop links you to the reseller — you check out and pay there.
Highlights
- 15 channels
- Up to 5A/ch · 30A total
- Internal fusing
- Aluminium housing
Specifications

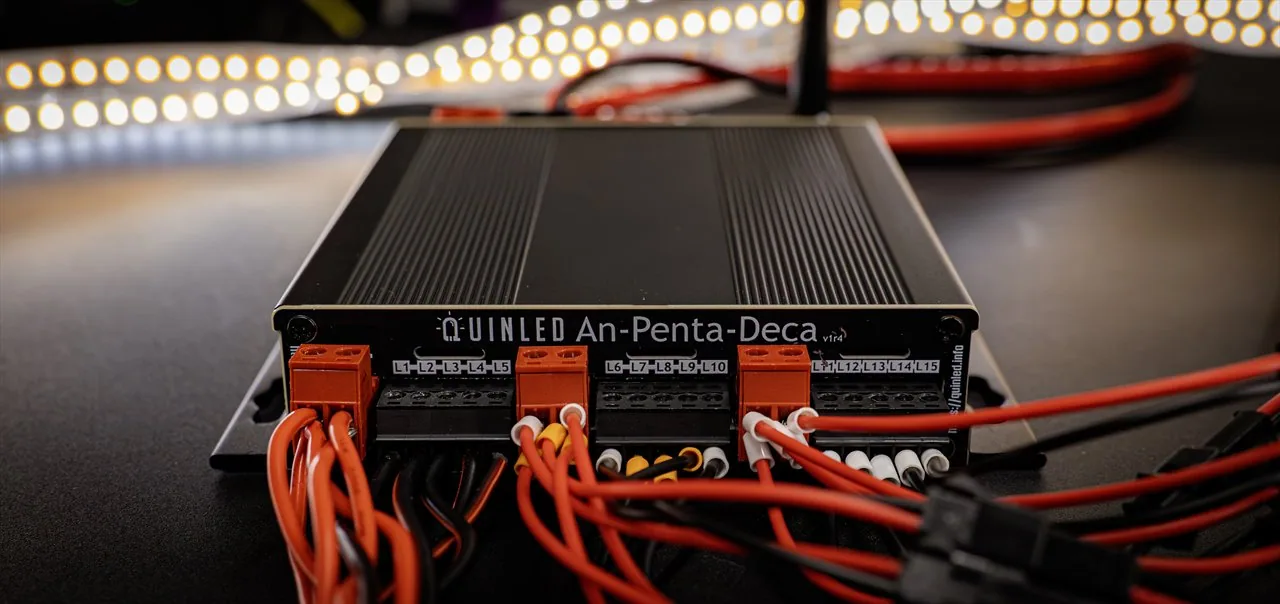

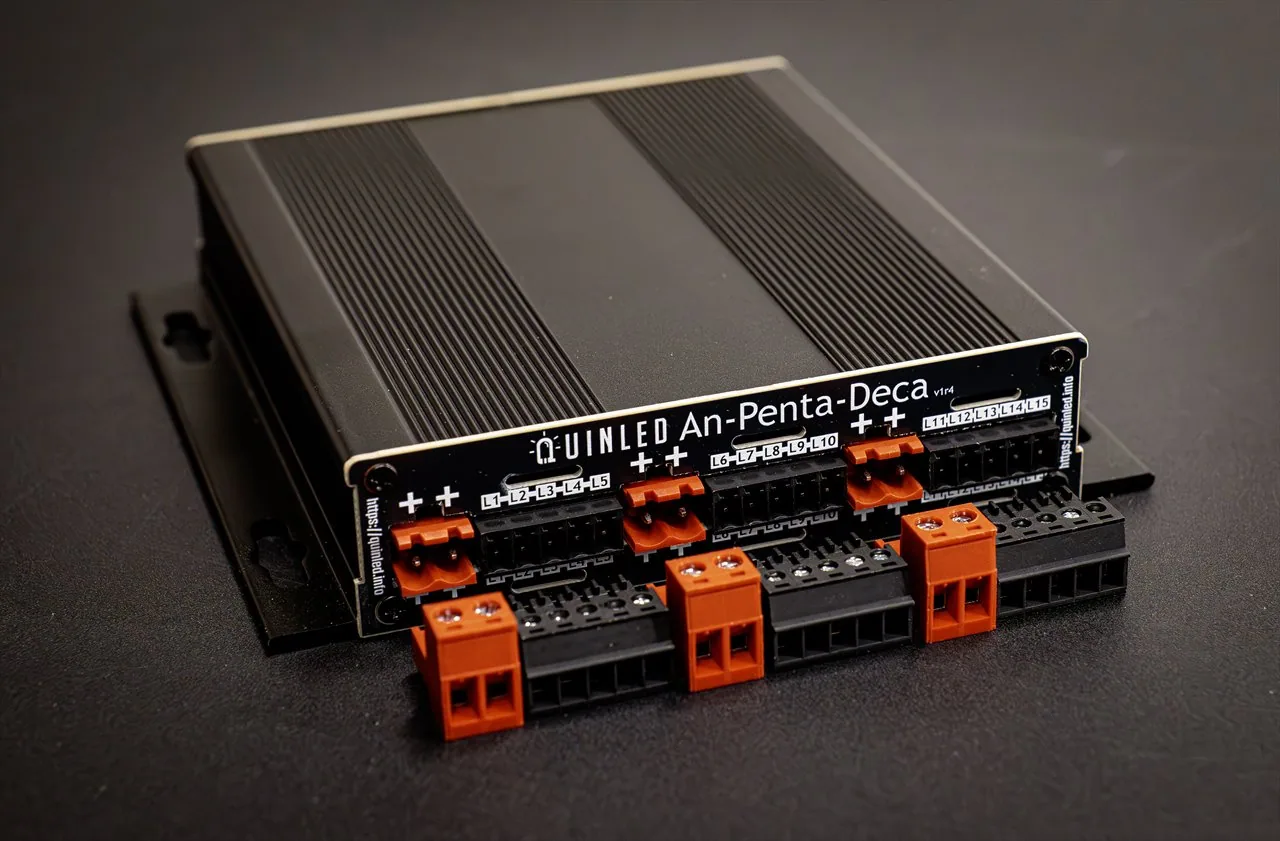

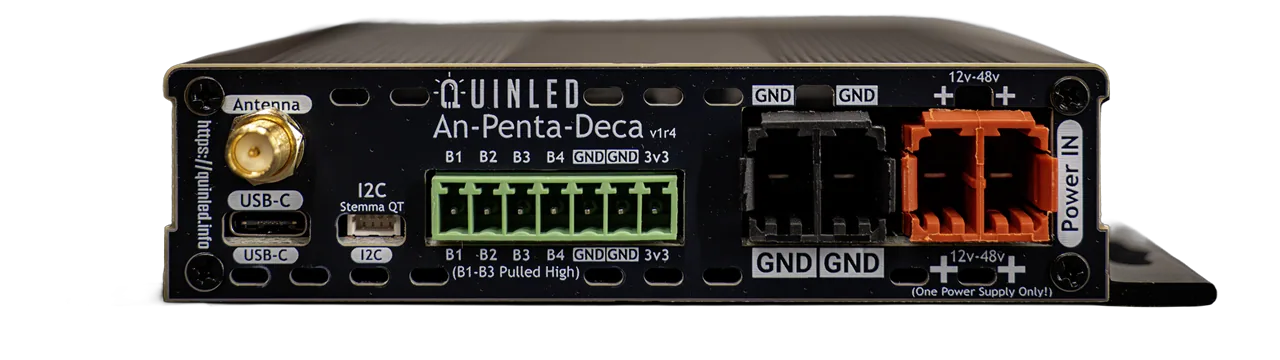

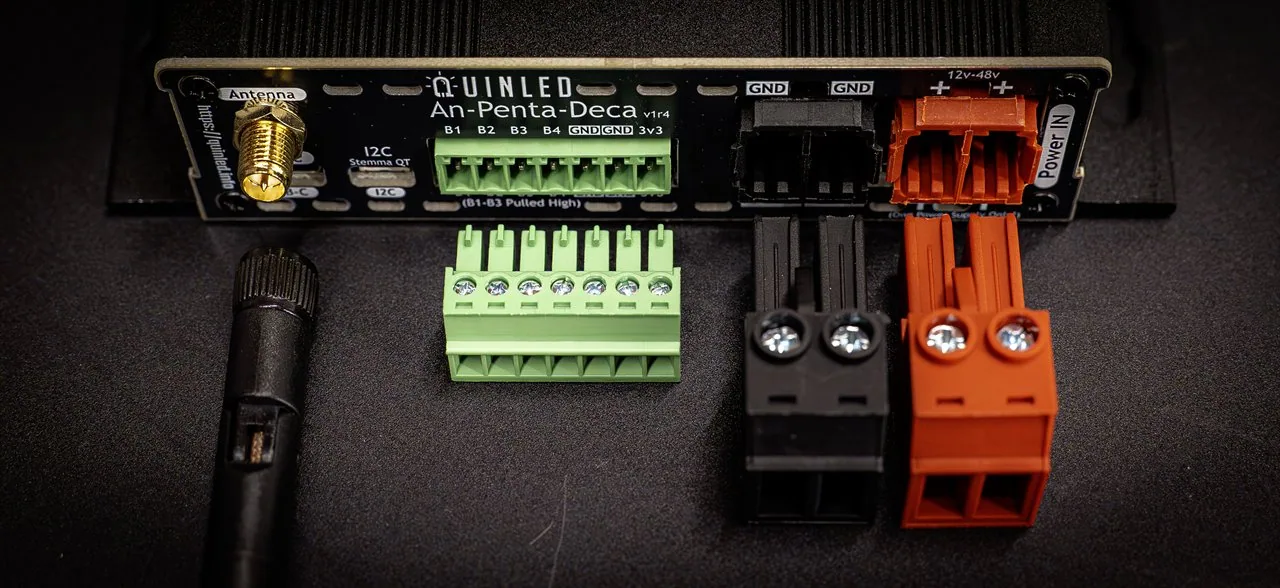

The QuinLED An-Penta-Deca is a 15-channel high-power analog LED dimmer for 12–48V strips, built on an ESP32 in an aluminium case — effectively a double Penta for installs needing many independent PWM channels. It runs flicker-free ~20kHz PWM with internal fusing, and starts from $39.99.
The An-Penta-Deca is for the big analog jobs: a whole tunable-white ceiling, a façade split into many zones, or any install where you'd otherwise bolt two dimmers together. Fifteen independent channels let you drive each section on its own from one board and a single power feed, keeping a large architectural or stage rig far tidier than wiring up several smaller dimmers.
| Channels | 15 (analog) |
|---|---|
| Input | 12V – 48V |
| Power | up to 5A/ch · 30A total |
| MCU | ESP32 |
| Wireless | WiFi (ext. antenna) |
| Case | Aluminium |
