QuinLED dig2analog+
Higher-voltage, higher-power digital-to-analog bridge.
The upgraded bridge: 5 channels (RGBCCT), 12–48V, more power and a replaceable fuse.
Where to buy
2 resellers
Pricing indexed mid-2026 — check the store for current pricing. quinled.shop links you to the reseller — you check out and pay there.
Highlights
- 5ch RGBCCT · 12–48V
- 2×5A + 3×3A · 6.3A total
- 4kHz PWM · replaceable fuse
- No microcontroller
Specifications

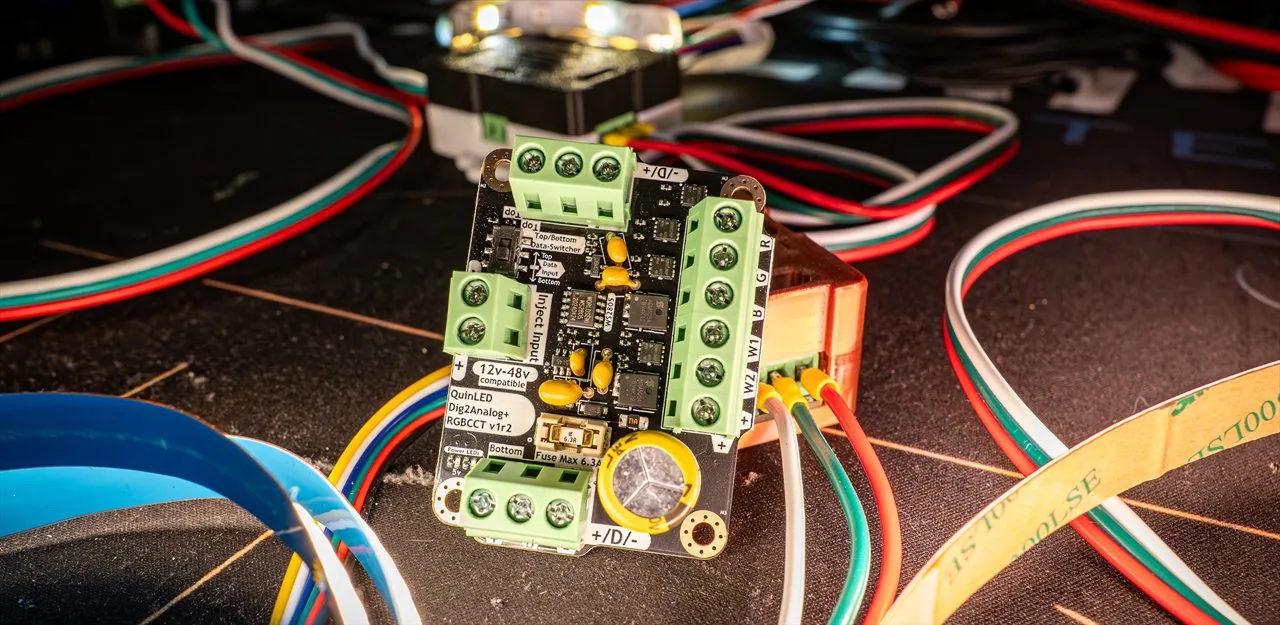

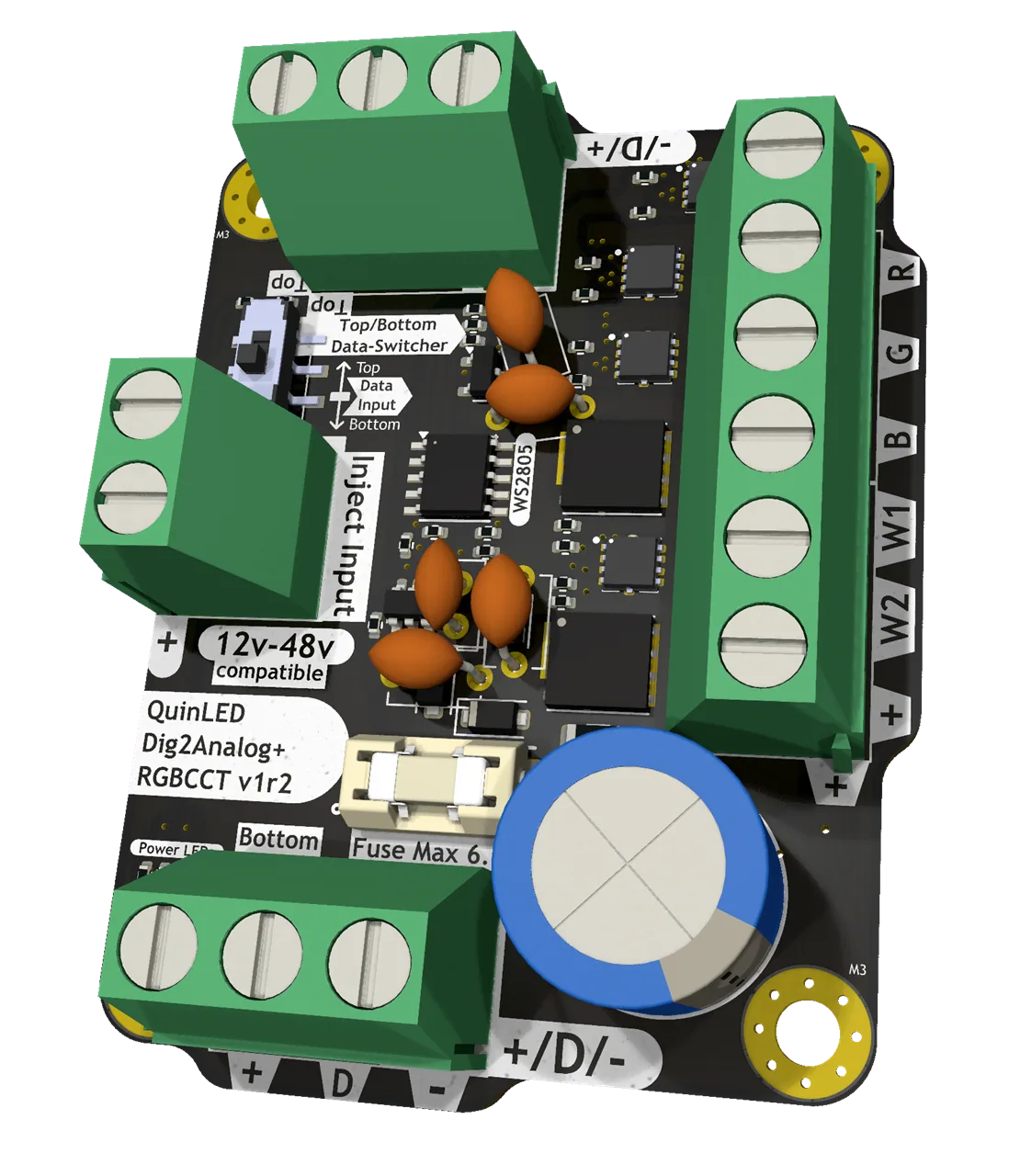

The QuinLED dig2analog+ appears as a single addressable pixel but drives five PWM channels (RGBCCT) for dumb strips at 12–48V, using the WS2805 chip with no microcontroller. It handles 2×5A plus 3×3A (6.3A total) at 4kHz PWM with a replaceable fuse, and starts from $9.99.
The dig2analog+ is the bigger sibling: it still appears as a single addressable pixel but drives five PWM channels (RGBCCT) for dumb strips at 12–48V, with more power, a higher 4kHz PWM frequency and a replaceable fuse. The choice for higher-voltage or tunable-white analog runs from a digital controller.
| Chip | WS2805 |
|---|---|
| Channels | 5 (RGBCCT) |
| Input | 12V – 48V |
| Power | 2×5A + 3×3A · 6.3A total · 4kHz |
