QuinLED Diff-Solo
Send one LED data signal up to 500m.
Differential signalling carries a single addressable data signal over a single UTP cable, up to 500m.
Sold as a 1-to-1 Sender + Receiver pair.
Where to buy
3 resellers- ALLNET China Worldwide $12.99 USD Buy
- DrZzs United States $21.00 USD Buy
- Jerems Inc Canada C$20.99 CAD Buy
Pricing indexed mid-2026 — check the store for current pricing. quinled.shop links you to the reseller — you check out and pay there.
Highlights
- 1 data signal over UTP
- Up to 500m / 1800ft
- Sender 5–12V · receiver 5–24V
- 5A fused receiver
Specifications
The QuinLED Diff-Solo uses differential signalling to push one addressable LED data signal over ordinary UTP/Ethernet cable, reaching up to 500m (1800ft); the sender runs at 5–12V and the receiver at 5–24V. It is sold as a 1-to-1 sender + receiver pair, and starts from $12.99.

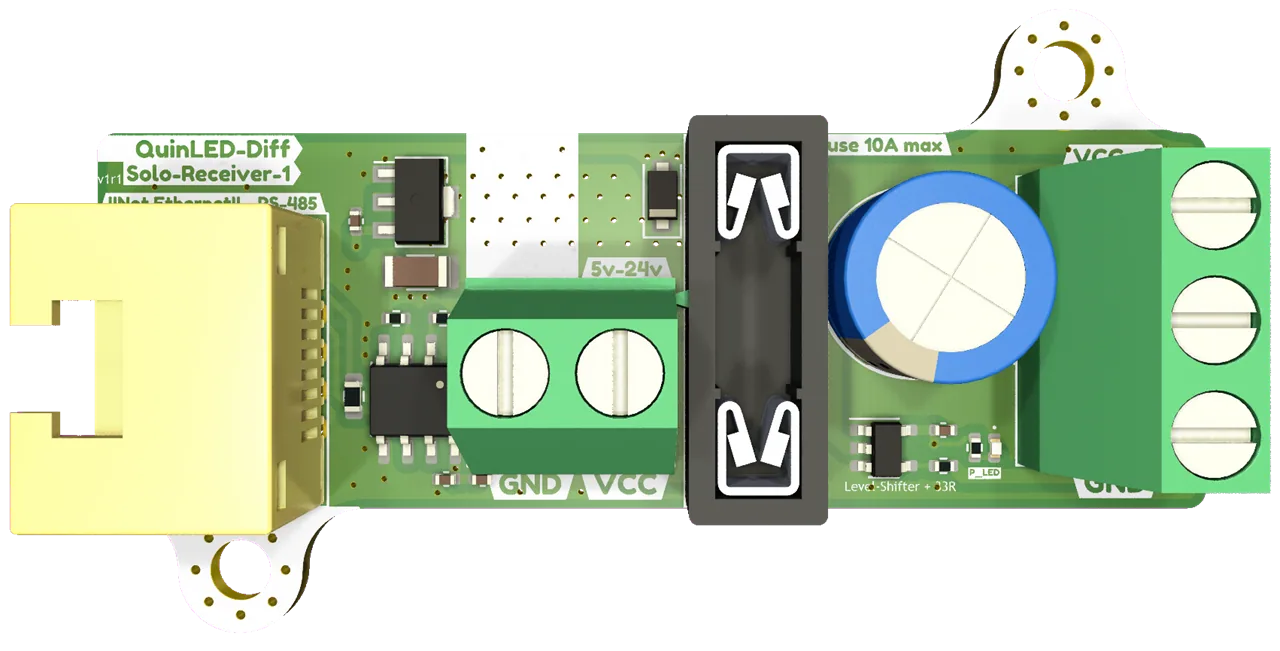

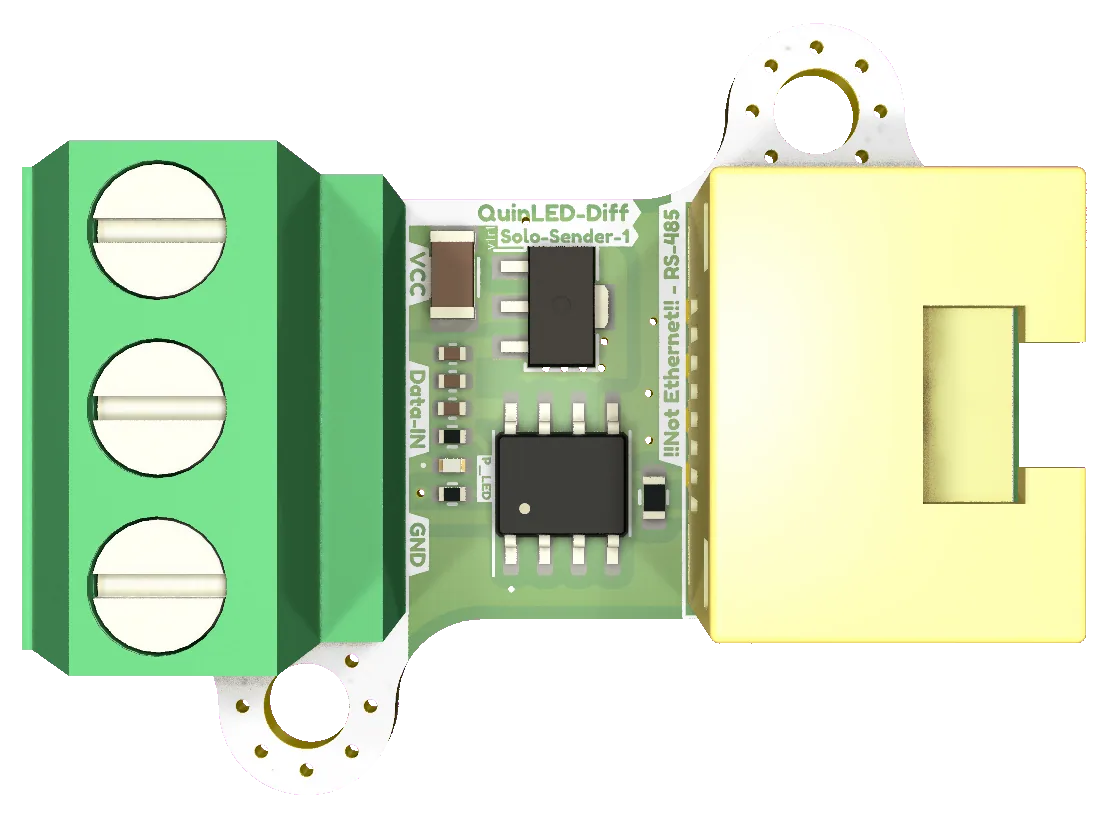

The Diff-Solo is the simple long-distance answer: it uses differential signalling to push one addressable LED data signal over ordinary UTP/Ethernet cable, reaching up to 500m. Pair the sender with a receiver where the signal needs to come back out.
| Signals | 1 |
|---|---|
| Distance | up to 500m / 1800ft |
| Input | Sender 5–12V · Rx 5–24V |
| Setup | 1-to-1 pair |
| Max current | 5A (fused receiver) |
